MAIN FEATURES
Active detection of vehicles up to 400m and walkers up to 220m
Simultaneous tracking of up to 32 targets
High detection resolution with accurate position and speed information
Support web setting and configuration via IP address
Support Ethernet communication and alarm outputs
Multiple alarm zones can be defined for different security levels
24/7 protection in all weather conditions
Open architecture and easy to integrate
PRODUCT INTRODUCTION

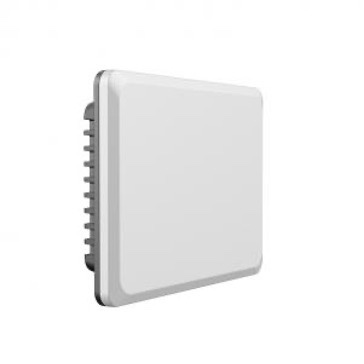

PT-S40 is a perimeter intrusion detection radar. The radar sensor uses MIMO array antenna design and low power FMCW technologies. It automatically alerts for intrusion events with the distance, angle, and speed information of the intruder. By adopting machine learning, the radar is able to distinguish between walkers, vehicles and animals, and thus it is able to filter the false detection caused by trees, insects and small animals.
SPECIFICATIONS
ITEMS
PARAMETERS
Model
PT-S40
Radar Type
Frequency Modulated Continuous Wave (FMCW)
Frequency Band
79 GHz
Scan Rate
10Hz
Detection Range
3 ~ 220 m (Walker) / 10 ~ 720 ft (Walker)
3 ~ 300 m (Vehicle) / 10 ~ 1000 ft (Vehicle)
Detectable Target Velocity
Effective Field of View (Horizontal)
0.2 ~ 10 m/s (0.6 ~ 32 ft/s)
±5°
Elevation
±3°
Angle Accuracy
±0.5°
Range Resolution
±0.45 m / ±1.47 ft
Simutaneous Tracking
≥32
Alarm Output
NO/NC, GPIO
Operating System
WEB access & configuration
Third-party Integration
SDK/API on TCP/IP
IP Rating
Power Supply
IP66
12V DC
Power Consumption
5 W
Operating Temperature
-40℃ ~ 70℃ / -40°F ~ 158°F
External Dimension of Radar Unit
300 x 130 x 30 mm / 11.8 x 5.1 x 1.2 in
Weight of the Radar Unit (Approx.)
≤1kg
Communication Interface
Ethernet & RS485
Installation Height
2 ~ 4 m / 6.5 ~ 13 ft
