  • CV20C - Sleep Vital Data Monitor - Top Mounting

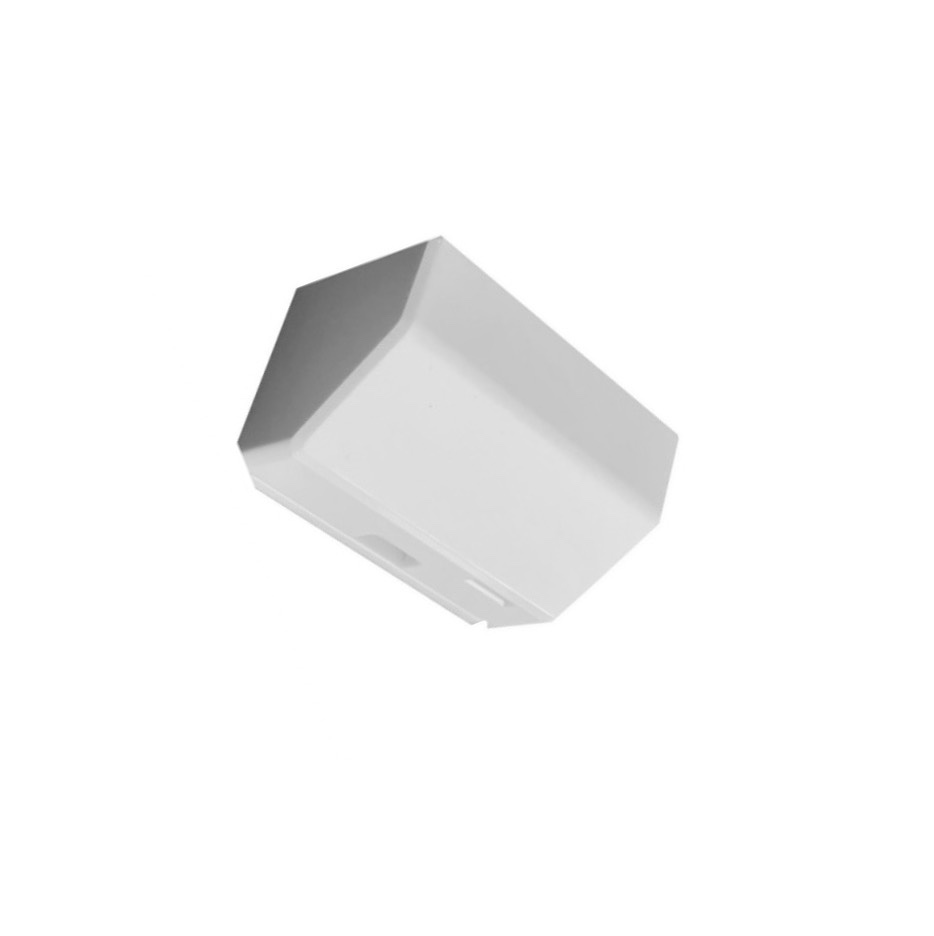

CV20C - Sleep Vital Data Monitor - Top Mounting

fall detection radar  , sleep radar  , vital radar
запрос Отправить письмо

Описание

ADVANTAGES

No privacy disclosure.

Remote and non-contact detection.

Outputs the real-time breath rate and heart rate of the human body.

Detects and outputs the information that if the human body is in the bed to the connected client software.

Counts the time in the bed and the time out of the bed.

Detects and outputs the human body movements to the connected client


MAIN FEATURES

CONTACTLESS HEART RATE MONITORING. Contactless and remote real-time monitoring of heart rate.

BREATHING MONITORING.Contactless and remote real-time monitoring of respiratory rate.

SLEEP MONITORING.Automatically track the user's sleep routine and trends.

STRESS LEVEL SCORES.Automatically evaluate and track the user's stress levels and trends.

BED-EXIT ALERT. Active alerts warn if the user is about to get up/ leave the bed .

ABNORMAL BIO-VITAL ALERT. Active alerts warn if the user's bio-vitals exceed the pre-set threshold.

NOT-IN-BED ALERT. Active alerts warn if the user is away from the bed longer than expected.

OVERSLEEPING ALERT. Active alerts warm if the user is still in bed longer than their normal schedule.

ABNORMAL SLEEP ALERT.Active alerts warn if the users stays up too late at night.

FREQUENT NIGHT ACTIVITY ALERT.Active alerts warn if the user gets up too often at night.


SPECIFICATIONS

ITEMS

PARAMETERS

Model

PT-CV20C

Radar type

Frequency Modulated Continuous Wave (FMCW)

Frequency band

K band (24GHz, FCC & ETSI Unliscenced Band)

Transmission power

9. .6dBm

Detection range

0.3-1.5m (heart) 0.3-2.5m (breath) 11.8 in-4.1ft (heart) 11.8in-8.2ft (lbreath)

Effective field of view (horizontal)

Effective field of view (vertical)

80°

60°

System power

5V DC 1A

Operating temprature

-25C~50C 1-13"F~122*F

Extermal dimension of the unit

100x100x32.1mm /3.9x3.9x1.3 in

Weight of the unit (approx.)

156g 15.50z

Communication protocol

TCP protocol

WiFi connection

(Data transmission) 802.11 b/g/n



APPLICATIONS
