Description
MAIN FEATURES
Active 3D detection with stable target tracks
Up to 3km detection range on mini UAV
High detection resolution with accurate position and speed information
24/7 protection in all weather conditions
Enhanced GPS module for easy calibration
Open SDK/API for 3rd party integration
Affordable system, high ROI
PRODUCT INTRODUCTION

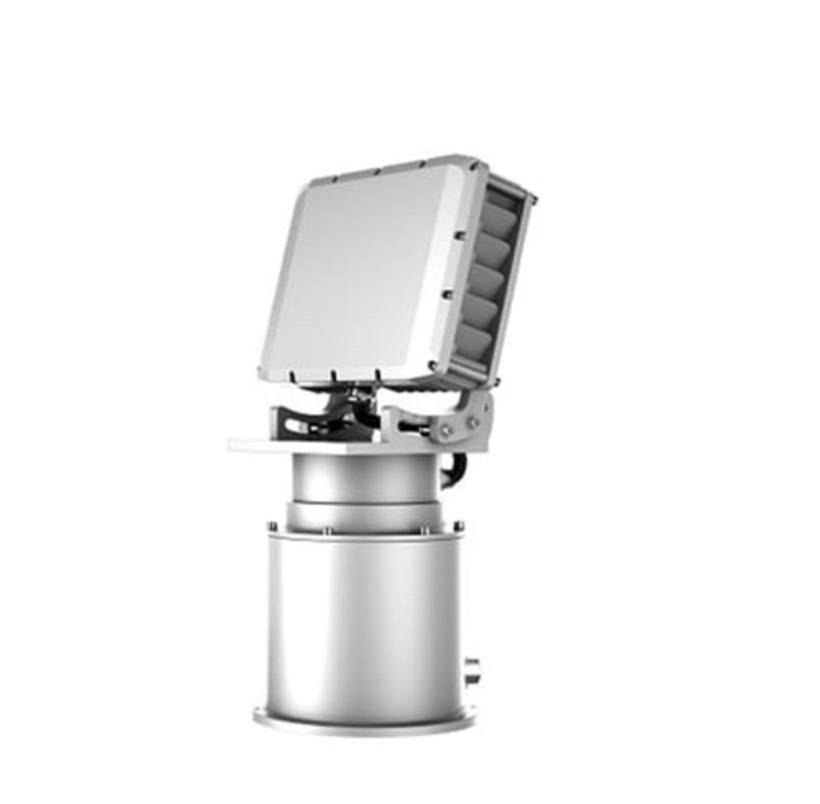

The PT-D30 Anti Drone Radar is an cost-effective 3D radar with great performance, supporting 360° continuous detection of mini-UAVs up to 3 km. It has the capability to identify up to 50 targets simultaneously with distance, azimuth, height, and speed data. It is perfect for anti-UAV application for correctional facilities, airports, critical infrastructures, oil refineries, and national events etc.
SPECIFICATIONS
|
ITEMS |
PARAMETERS |
|
Model |
PT-D30 |
|
Radar Type |
Frequency Modulated Continuous Wave (FMCW) |
|
Frequency Band |
K Band (24GHz, FCC & ETSI unlicensed) |
|
Bandwidth |
100MHz |
|
Scan Type |
Mechanical Scanning |
|
Scan Speed
Detection Range |
10 rpm (60°/s) |
|
3 km (RCS=0.01 m²) |
|
|
Range Resolution |
±1.5m / ±4ft. (RCS=0.01 m²) |
|
Effective Field of View (Horizontal) |
0° ~ 360° |
|
Effective Field of View (Vertical) |
-14° ~ 90°(adjustable) |
|
Angular Accuracy |
±0.7° (RCS=0.01 m²) |
|
Elevation Beam |
28° (RCS=0.01 m²) |
|
Detectable Target Velocity |
0.2 ~ 20 m/s / 0.4 ~ 45.2 mph (RCS=0.01 m²) |
|
Simultaneous Tracking |
50 |
|
Transmission Power
Power Consumption |
3 W |
|
≤110 W |
|
|
IP Rating |
IP65 |
|
Operating Temperature |
-25℃ (-13°F) ~ 60℃ (140°F) / -40℃ (-40°F) ~ 60℃ (140°F) (optional) |
|
External Dimension of Radar Units |
740*600*600 mm / 29.1*23.6*23.6 in |
|
Weight of the Radar Unit (Approx.) |
30 kg / 66.2 lbs |
|
Communication Interface |
RJ45 and RS485 |
|
Operating Software |
Windows-Based OS |
|
Multi-Radar Operation |
Supported |
|
GPS Positioning |
Supported |
|
Auto North |
Supported |
|
Remote Firmware Update |
Supported |
