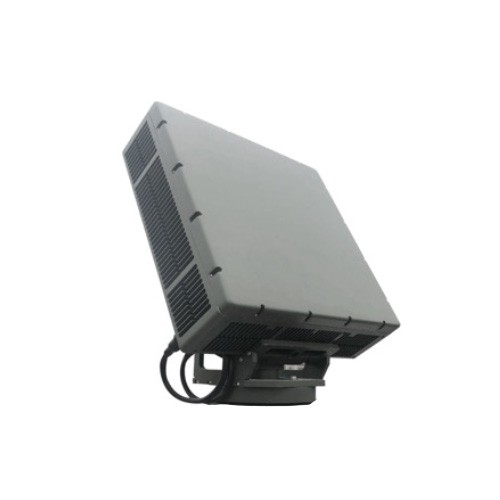

PT-D30M Mini FPV Gaze Radar, 2D Active Phased Array

Description

MAIN FEATURES

2D AESA radar
Cost effective, mini sized and ultra-light weight. Easy to carry, quick mount on vehicles.
Excellent gaze ability, especially for FPV tracking. High detection resolution with accurate position and speed information.
≥ 3 km detection range on mini-drones, ≥ 8km for vehicles.
Support Scanning While Tracking (TWS)
Support search plus tracking (TAS) and single target tracking (STT)
Wide transmitting and narrow receiving beam, subarray level MIMO.
Extendable to Distributed Radar Array

PRODUCT INTRODUCTION

The PT-D30M Anti Drone Radar is an cost-effective 3D radar with great performance, supporting continuous detection of mini-UAVs up to 3 km. It has the capability to identify up to 200 targets simultaneously with distance, azimuth, height, and speed data. The product has the advantages of high detection accuracy, fast scanning speed, low false alarm rate and strong anti-interference ability. It is perfect for anti-UAV application for correctional facilities, airports, critical infrastructures, oil refineries, and national events etc.

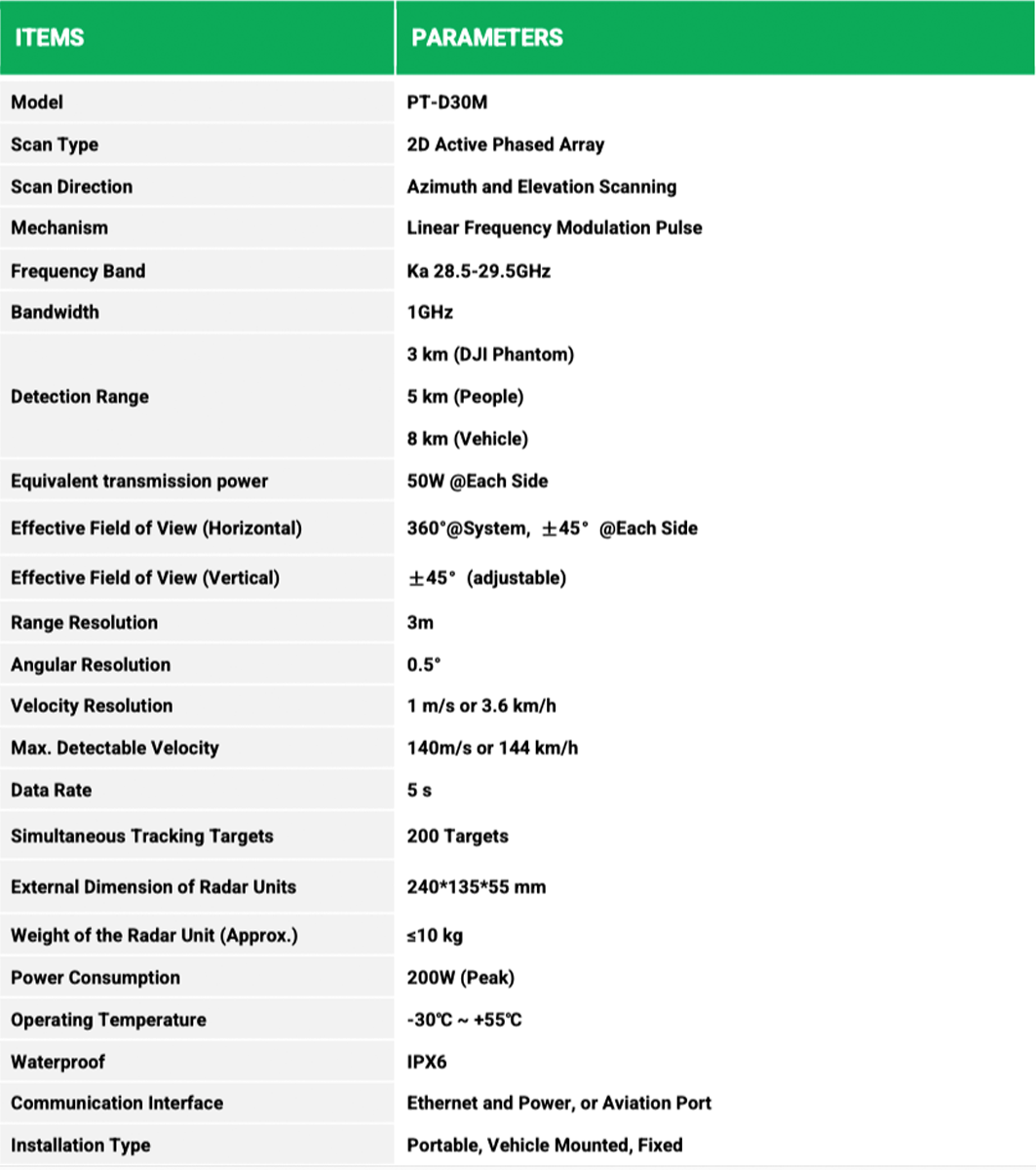

SPECIFICATIONS
