S40F - Fixed Drone Scanner

Description

MAIN FEATURES

9 Band Spectrum Detection.
Sensitive Area Protection
Target Identification and Control
Autonomous Positioning and Operation
Accurate Information Analysis
Collaborative Linkage and Positioning
Flexible Deployment and Data Management

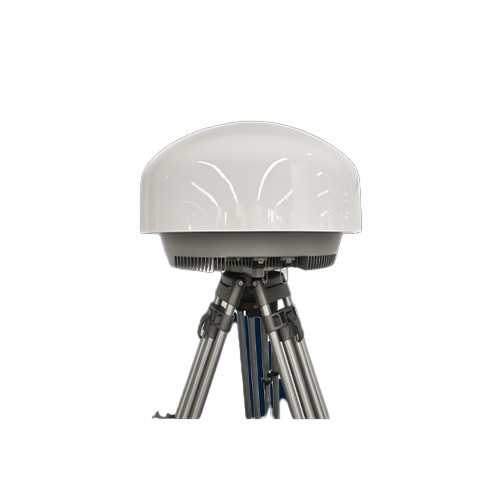

PRODUCT INTRODUCTION

The radio detection equipment features UAV spectrum identification, protocol analysis, and direction finding for key frequency bands. It can detect and discover radio signals of UAVs within the scanned frequency range, and implement detection, direction finding, and positioning based on the radio signals radiated by UAVs. It is characterized by long detection distance, high direction finding accuracy, and low false alarm rate.

This product is suitable for both urban environments and open field environments. It is mainly used for fixed deployment, also supports vehicle-mounted mobile installation and triangular bracket installation.

HIGHLIGHTS

Target Identification and Control. Cracks mainstream model protocols, with an upgradeable spectrum feature database, enabling identification of mainstream UAV models. It can automatically frame, record, and conduct direction finding on suspicious targets such as unknown models. It also has a black-and-white list function to accurately control various UAVs and avoid risks.
Autonomous Positioning and Operation. Equipped with a navigation component (including a positioning module), it can independently complete positioning and north-seeking (automatic north calibration and GPS positioning). It has an unattended function, enabling 7*24h fully automatic and efficient operation without manual intervention. It can automatically record information such as the time, ID, model, and azimuth of detected UAVs.
Accurate Information Analysis. It can parse DJI O2, O3, and O4 protocol messages to obtain information such as UAV SN codes, positions of UAVs and pilots, speed, and direction. It supports the analysis of UAVs with national standard messages, monitors the RID (Remote ID) information actively broadcast by UAVs, and displays multi-dimensional information in real-time, including serial numbers, models, positions (UAVs and pilots), flight speed, altitude, and take-off points

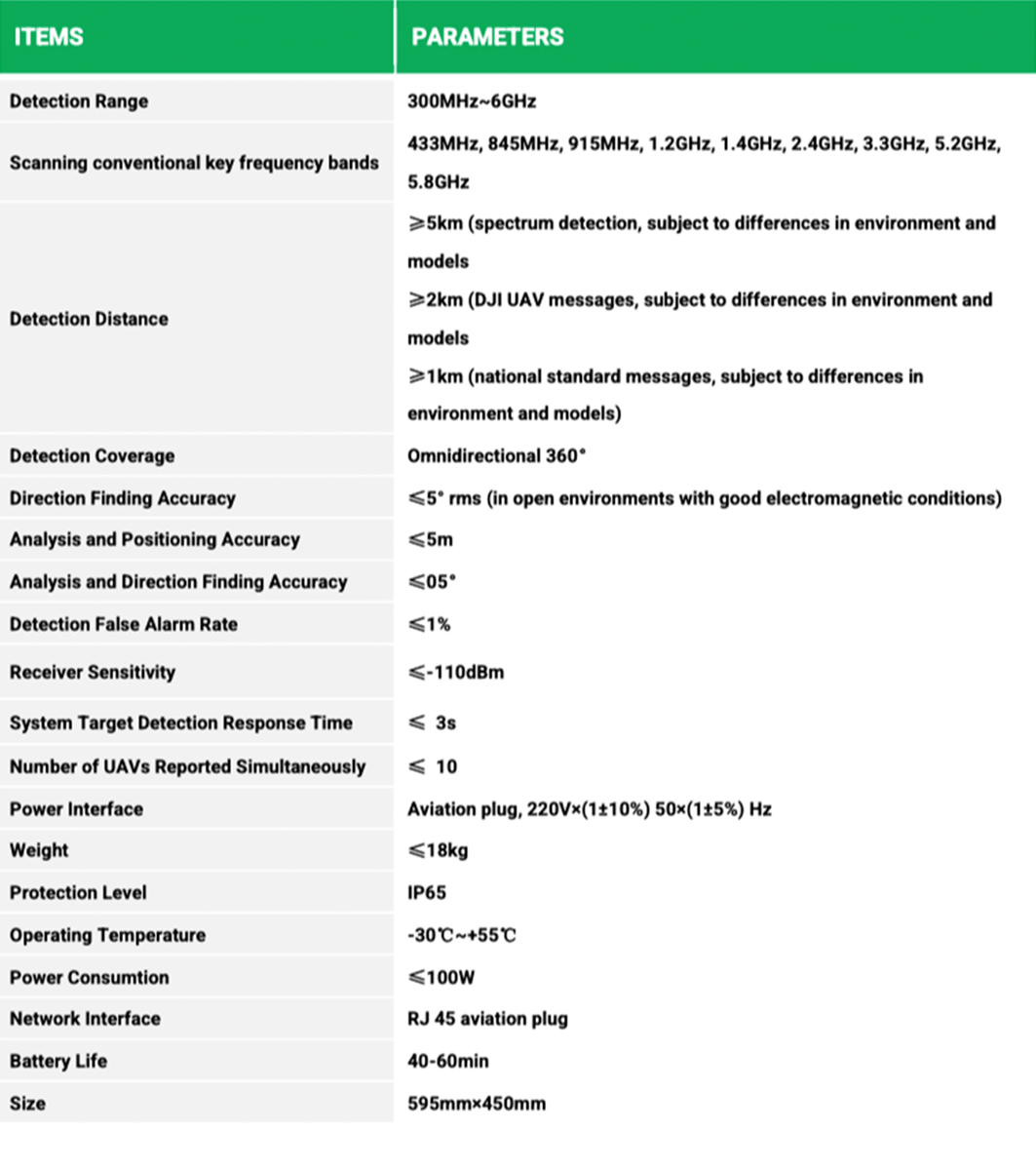

SPECIFICATIONS
