MAIN FEATURES
- 2W peak puled power per channel
- 16 × 16 element
- Compact design
- Two-dimensional electronic beam scanning
PRODUCT INTRODUCTION

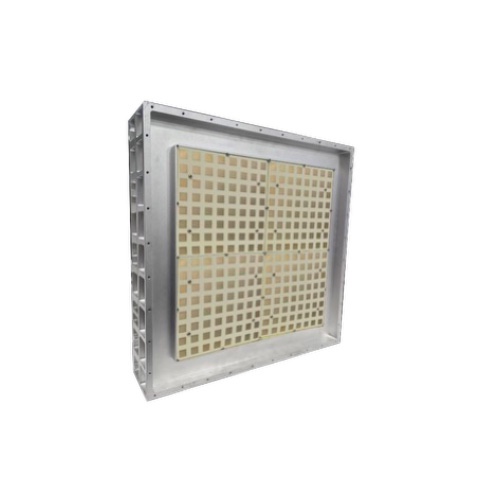

The product is X-band 256-element two-dimensional active phased array antenna featuring a 16 × 16 element configuration, with a per-channel peak puled power of 2W. The antenna supports excitation signal transmission, echo signal reception, beam synthesis, and phase and amplitude calibration. It mainly consists of an antenna array, T/R modules, beam control circuitry, feeding networks, sum-and-difference networks, and thermal management modules. The product is suitable for two-dimensional active phased array radar systems.
This two-dimensional active phased array antenna product series is based on beamforming chips and RF transceiver chips, integrating an antenna array, T/R modules, beam control circuitry, passive power divider and feeding networks, sum-and-difference networks, and thermal management modules. It provides phase and amplitude control, power amplification, and two-dimensional electronic beam scanning, and is designed for two-dimensional active phased array radar systems. The series features compact size, low profile, and long detection range.

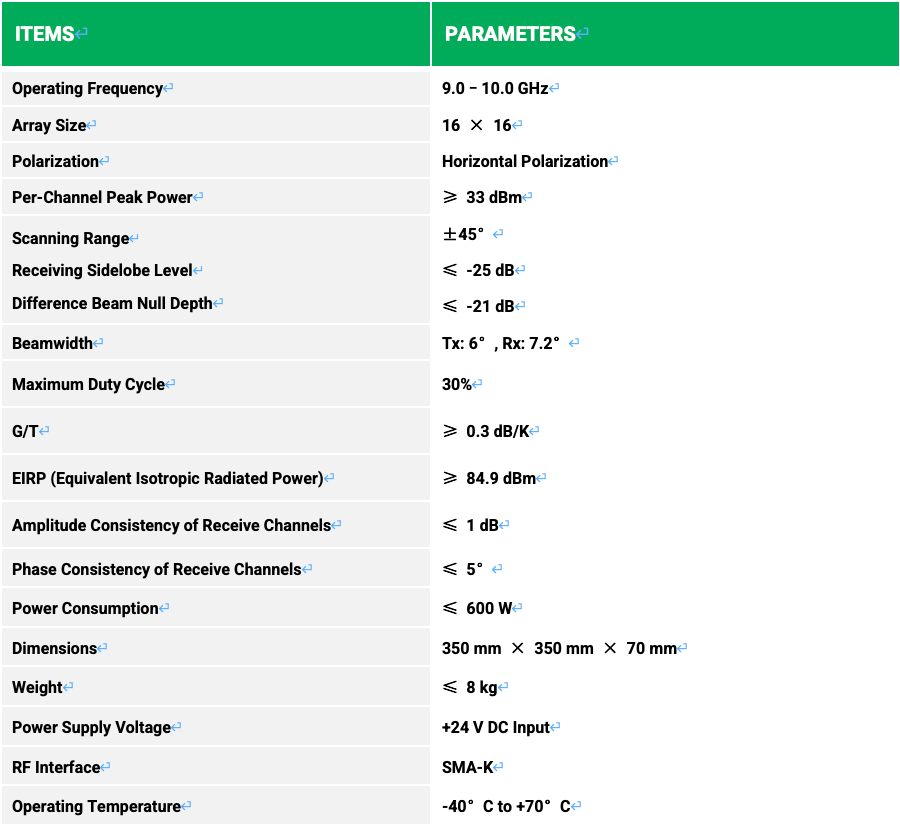

SPECIFICATIONS

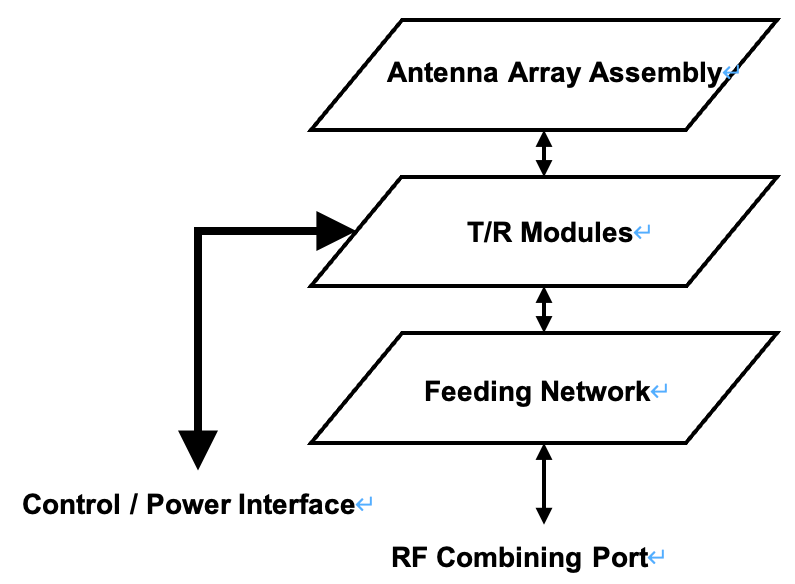

DIAGRAM

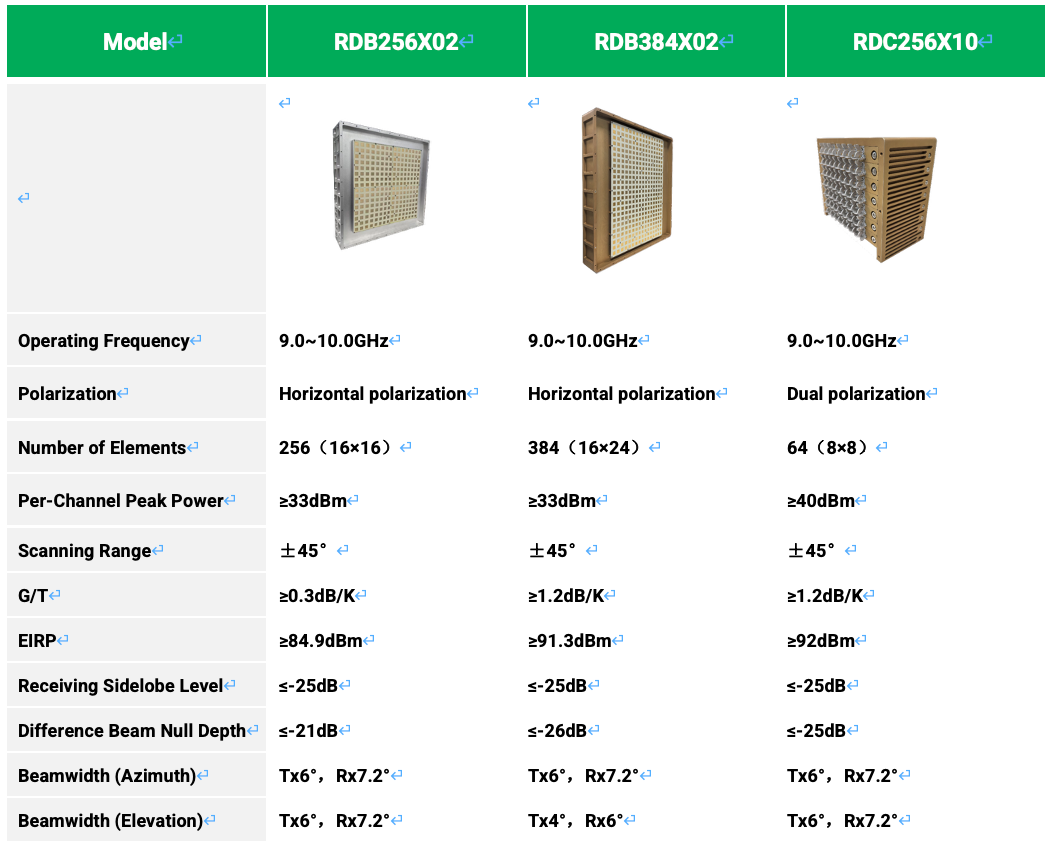

X Band AESA Antenna Series Comparison
