RDB384X02–X Band 384 Element AESA Antenna

Description

MAIN FEATURES

2W peak puled power per channel
16 × 24 element
Compact design
Two-dimensional electronic beam scanning
Low-profile structure

PRODUCT INTRODUCTION

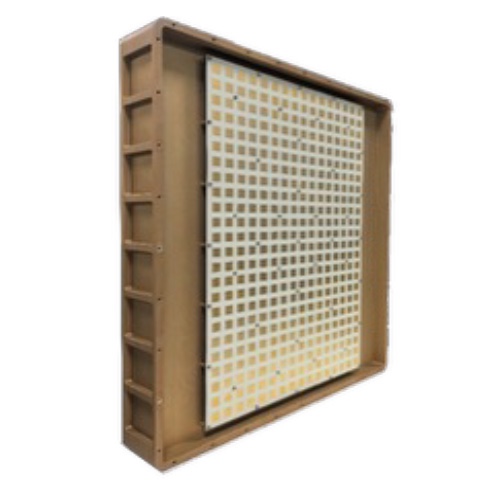

This product is an X-band 384-element two-dimensional active phased array antenna featuring a 16×24 element configuration, with a per-channel peak puled power of 2W. The antenna supports excitation signal transmission, echo signal reception, beam synthesis, and phase and amplitude calibration. It mainly consists of an antenna array, T/R modules, beam control circuitry, feeding networks, sum-and-difference networks, and thermal management modules. The product is suitable for two-dimensional active phased array radar systems.

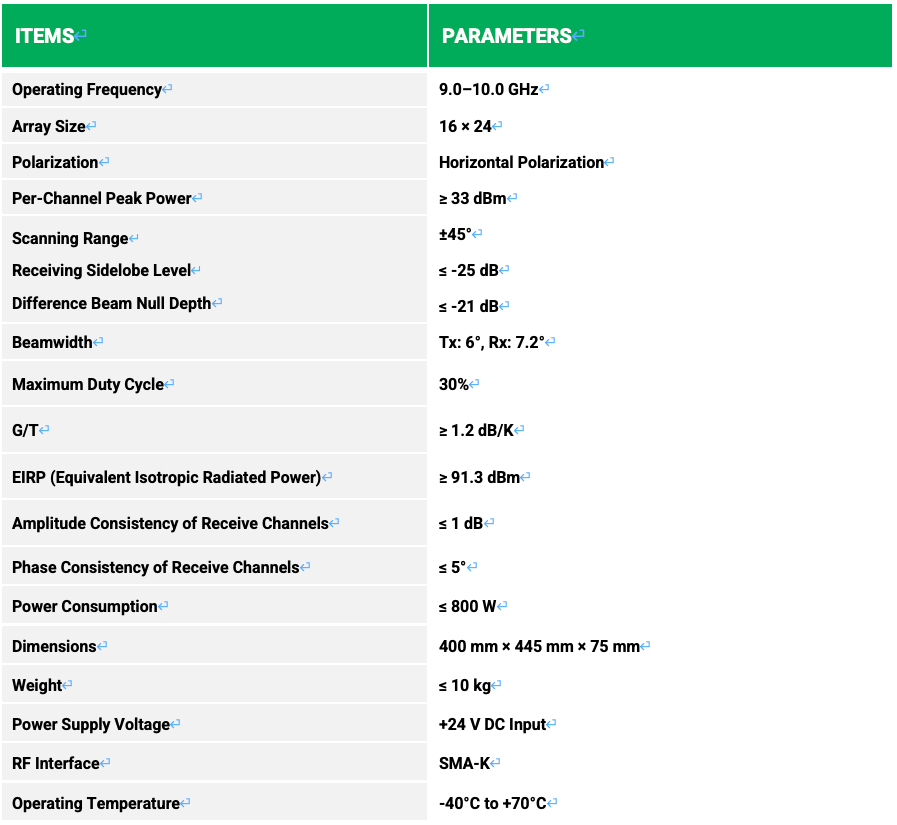

SPECIFICATIONS
