Description
MAIN FEATURES
- High output power
- Excellent thermal conductivity
- Low noise performance
- Supports pulsed and continuous-wave modes
- Customizable design
APPLICATIONS
- AESA radar antenna panels
- Transmit/receive modules for radar, communications, meteorology, navigation, and other electronic systems
PRODUCT INTRODUCTION

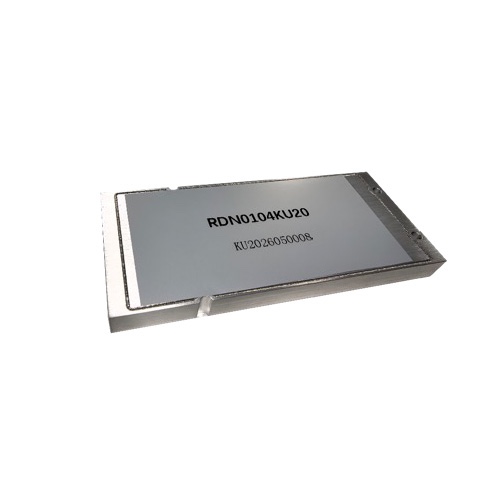

This product is an KU-band analog T/R module featuring four channels, with a per-channel peak pulsed power of 20 W. It is manufactured using micro-assembly technology and mainly integrates a phase-and-amplitude multifunction chip, driver amplifier chip, GaN power amplifier chip, limiter chip, low-noise amplifier chip, circulator, and power modulation chip. The module offers high output power, excellent thermal conductivity, low noise, and low phase variation. It supports both pulsed and continuous-wave (CW) operating modes.
The product is suitable for one-dimensional or two-dimensional active phased array radar systems and supports customized development.
This brick-type T/R module product series is manufactured using advanced micro-assembly processes, offering extremely high reliability and integration density, as well as excellent channel-to-channel consistency and thermal management performance. The series mainly integrates independent transmit/receive channels, power divider/combiner networks, power processing and modulation, and logic control modules, and supports customized development of high-power products.

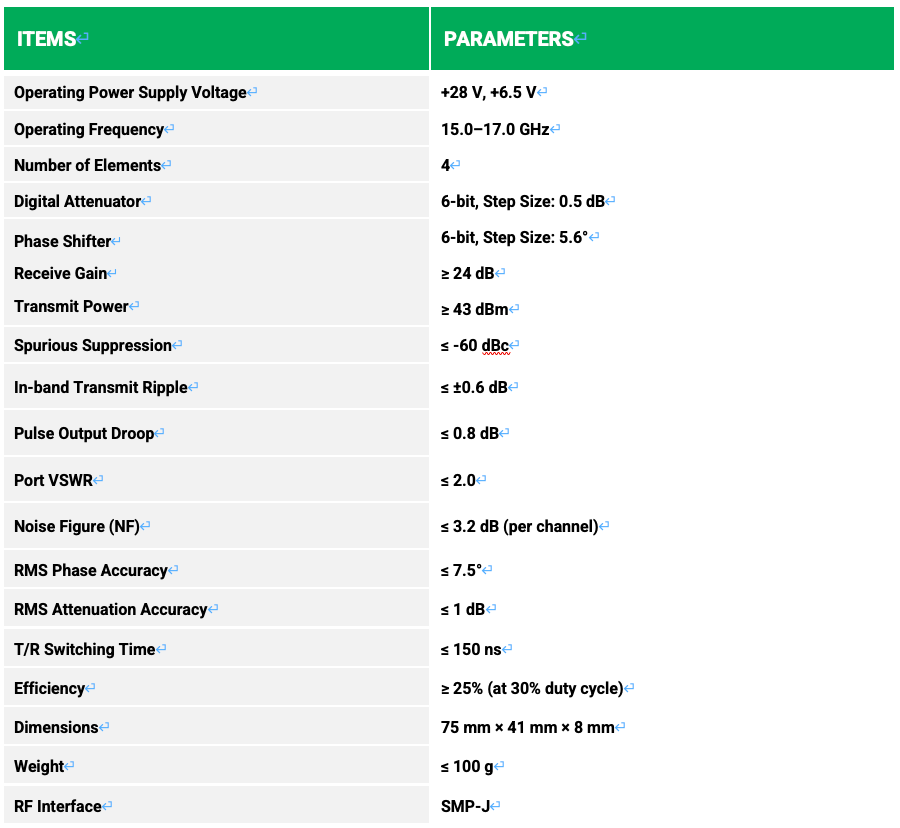

SPECIFICATIONS

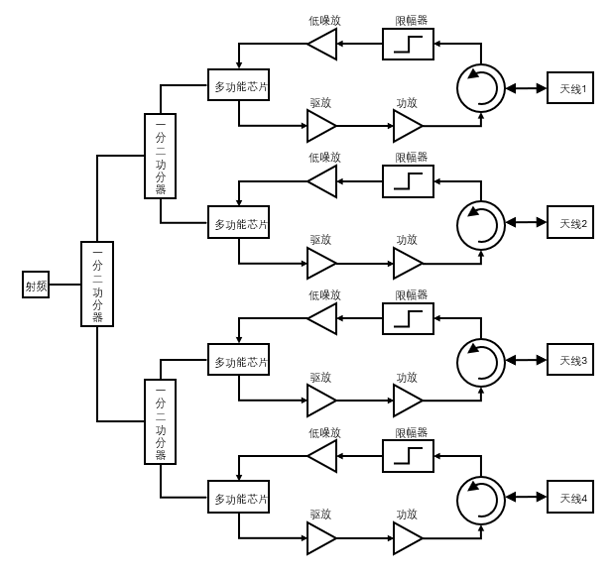

DIAGRAM
T/R Module Series Comparison
