D30M - 4-side Ka Band Drone Gaze Radar, 2D Active Phased Array

Description

MAIN FEATURES

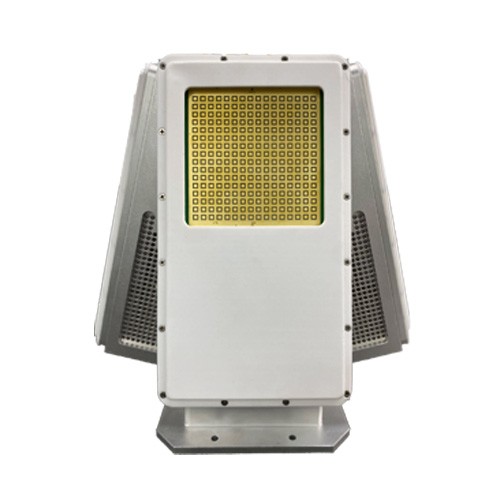

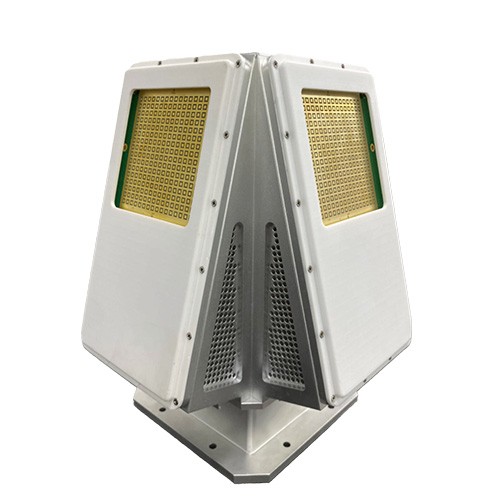

4 sided, 2D active phased array radar
Cost effective, mini sized and ultra-light weight. Easy to carry, quick mount on vehicles.
Driving-and-detecting when mounted on vehicle. No need to stop the vehicle.
Excellent gaze ability, especially for FPV tracking. High detection resolution with accurate position and speed information.
≥ 3 km detection range on mini-drones, ≥ 8km for vehicles.
Support Scanning While Tracking (TWS)
Support search plus tracking (TAS) and single target tracking (STT)
Wide transmitting and narrow receiving beam, subarray level MIMO.
Extendable to Distributed Radar Array

PRODUCT INTRODUCTION

The PT-D30F Anti Drone Radar is an cost-effective 3D radar with great performance, supporting 360° continuous detection of mini-UAVs up to 3 km. It has the capability to identify up to 256 targets simultaneously with distance, azimuth, height, and speed data. The product has the advantages of high detection accuracy, fast scanning speed, low false alarm rate and strong anti-interference ability. It is perfect for anti-UAV application for correctional facilities, airports, critical infrastructures, oil refineries, and national events etc.

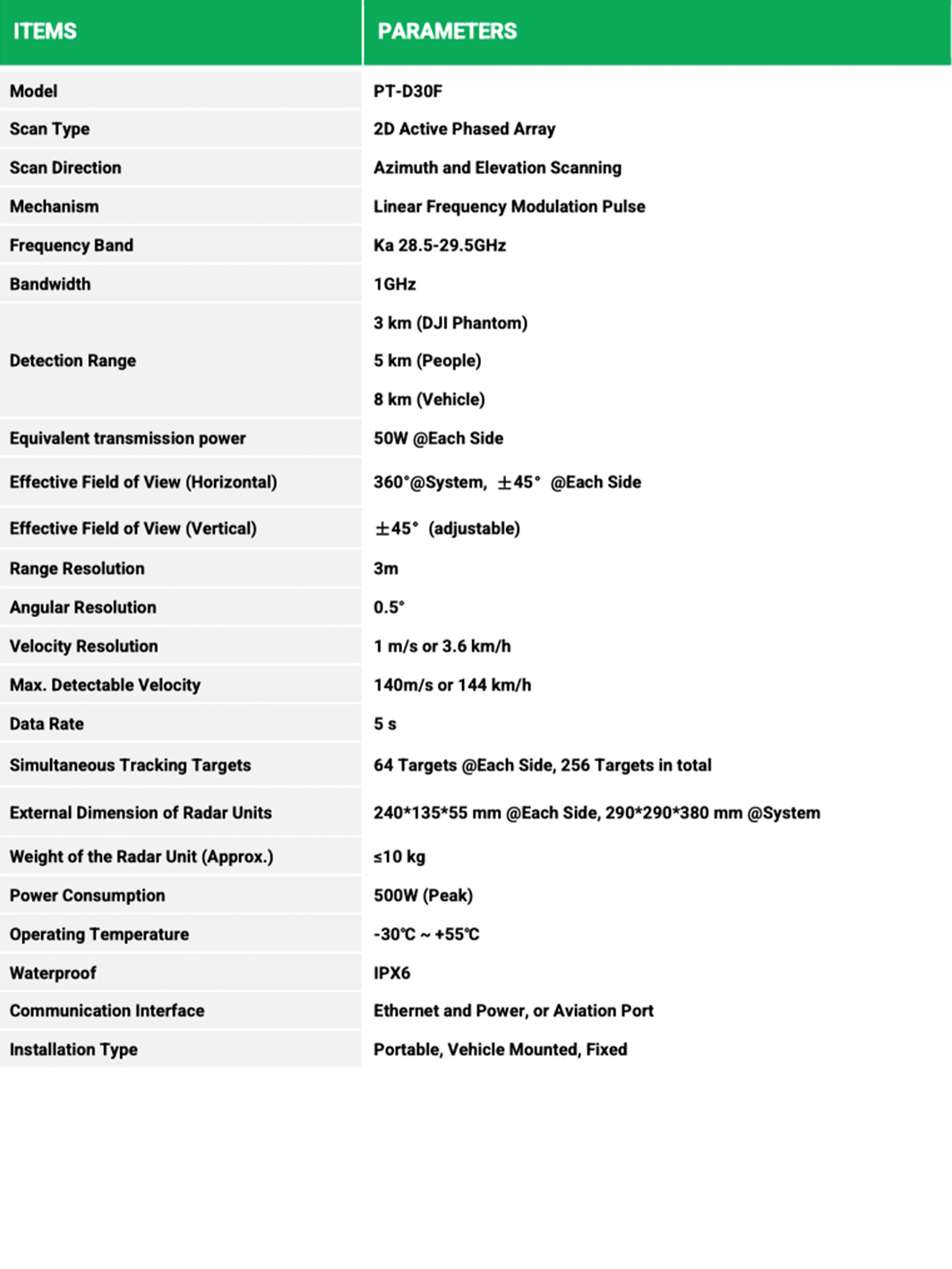

SPECIFICATIONS
