D10 - Drone RF Scanner & Jammer - 副本

anti drone radar  , Surveillance Radar  , UAV radar  , Drone Scanner  , DRONE Jammer
Inquiry Send Email

Description

MAIN FEATURES

Detecting and jamming in one solution

Full frequency detection

Vertical detection, vertical jamming at any angle

RF scan intelligent self-learning without relying on database

Add legal unmanned aircraft identification

Compact, easy to install: Portable, vehicle-mounted and stationary

Work as a radio monitoring receiver

24/7 protection in all weather conditions

Affordable system, high ROI




PRODUCT INTRODUCTION

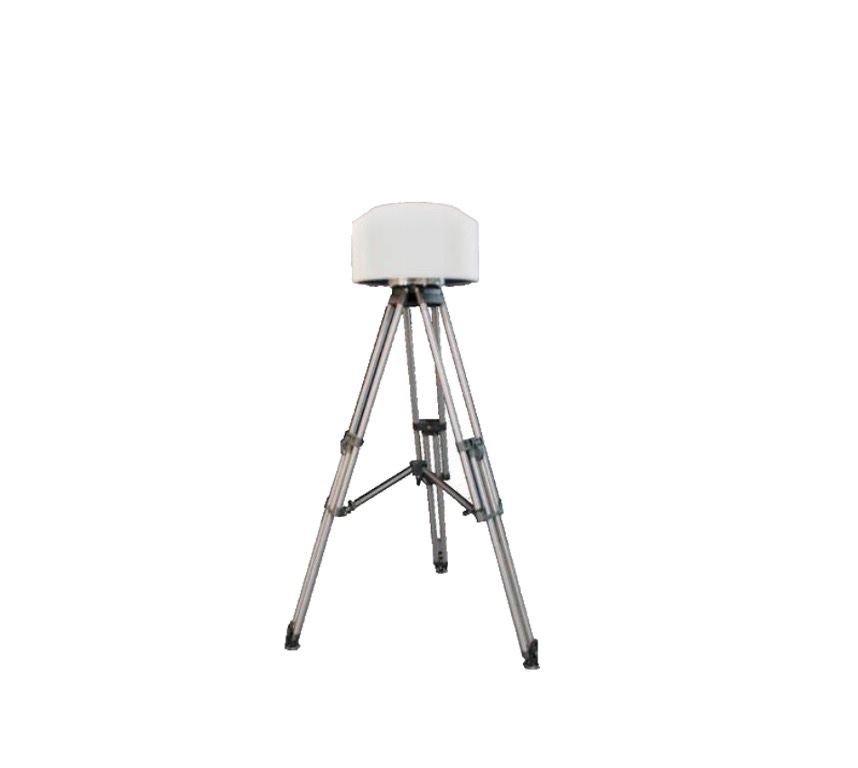

PT-D10 Drone RF Scanner & Jammer is based on the cutting-edge RF smart scan technology. PT-D10 can passively perceive the characteristics of drone signals, identify and locate the drones. It also lear drone signals independently without relying on databases to identify suspected drones, then countermeasures are made. With unattended function, integrated detecting and jamming, compact and easy to use, it can stop all black flying drones in multiple sorties at the same time.

SPECIFICATIONS

ITEMS

PARAMETERS

Detection receiver frequency range

70MHz~6GHz

Real-time bandwidth

168MHz

1 900-930MHz (industrial drone) 20W

Five interference bands

1559-1610MHz (GPS interference) 10W

2400-2485 MHz 25W

5725-5850MHz 25W

430-440MHz 10W (Optional)

Detection and jamming distance

500M-1.5KM

Counter distance

800M-1.5KM

Frequency range

380MHz-6GHz

Horizontal detection angle

0°- 360*

Maximum power consumption

Working temperature

400W

-20*~+60*

Storage temperature

-40*~+70*

Weight

20KG

Size

Diameter 500mm*height 500mm



APPLICATIONS
