Description
MAIN FEATURES
Multi-sensor technology and multi-stage decision making strategy all built into the same unit
Smart and automatic alert of intrusion events with high accuracy and very low false alert rate
Deep learning algorithm and smart target classification
Long-time stability self-diagnostics and self-maintenance
User friendly, easy to install and to operate
24/7 protection in all weather conditions
Ideal for perimeter security enhancement
PRODUCT INTRODUCTION

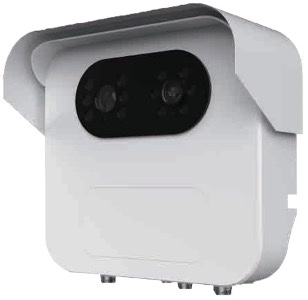

PT-SV20 is a multi-sensor intelligent perimeter surveillance terminal. It contains built-in radar and cameras, plus smart target recognition and classification all inside a single device. It adopts state of the art multi-sensor technology and multi-stage strategy decision making hierarchy to maximize situational awareness. The PT-SV20 is reliable with highly accurate detection of intrusions and very low false alarm rate. By adopting a software framework based on machine learning, it is able to rapidly adapt to the various environmental changes of the installation site, ensuring system accuracy and optimal user experience. It is perfect for perimeter surveillance in a variety of settings including of prisons, important infrastructures, and border control scenarios.
SPECIFICATIONS
ITEMS
PARAMETERS
Model
PT-SV20
Detection Range
up to 220 m /721 ft
Target Classification
Humans, Vehicles, Trains, Animals
Target Velocity
1 km/h ~ 400 km/h / 0.6 mph ~ 248 mph
System Response Time
Less than 3s (Intrusion detection)
Detection Accuracy
Simultaneous Tracking
High detection ratio with extremely low false detection (up to 99.99% accurate detection against 1 false alert monthly in lab condition)
Up to 32 targets
Deep Learning Algorithm
Supported
NTP
Supported
Self-Diagnose
Supported
Alarm Zones
Up to 4 customized alarm zones with different security levels.
GPS
Optional
Device Tilted Alarm
Optional
Device Obscured Alarm
Optional
Weather Recognition
Facial Recognition
Optional
Optional (up to 60 m)
Local Storage
Opional (up to 30+ days storage of Intrusion events with video and audio deeds)
Cameras
HD 1080P 2MP IR Camera (uncooled) With 40° Field of View (h.265); 2 units
Radar
MIMO Radar @79 GHz with high resolution and low dalse alarm rate with 10° field of view
Video/image Capture
Full HD 1080p daylight and lowlight
Strobe Siren Alarm
120 dB; one-way communication
Communication Interface
RJ45 10M / 100M self-adaptive Ethernet Interface
Installation
Power and Ethernet required. 2.5 m /8 ft above the ground.
Third-party Integration
SDK/API
Operating System
Windows/Linux
Protocol
TCP / IP
Connectivity
Ethernet; Wifi / 4G optional
Power Supply
24V DC
Power Consumption
90 W (peak)
IP Rating & System Protection
IP66 and optional lighting protection, anti-surge protection, ESD prevention
Working Temprature
-20 ~ 70°C with -40 ~ 70°C optional /-4°F ~ 158°F with -40°F ~ 158°F optional
Dimension
250*295*115 mm/9.8*11.6*4.5 in
Weight
＜5kg/11lb
