Description
FEATURE INTRODUCTION

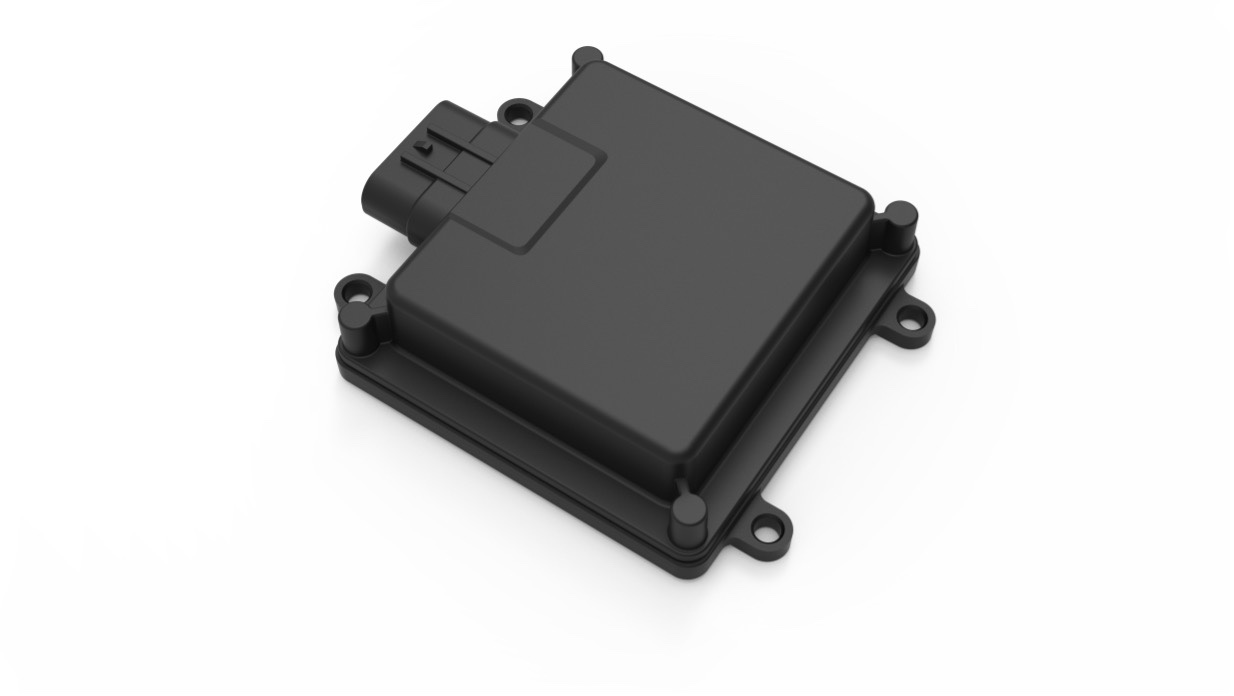

PT-A70 77GHz millimeter wave collision avoidance radar is developed to detect obstacles from front and forward collision and to give warning when driving at medium/low speed. Compared with infrared, laser and ultrasonic radars, millimeter wave radar is less affected by weather changes and has good anti-jamming performance and range detection ability.
SPECIFICATION
Items
Parameter
Technical Specification
System Properties
Working Voltage
12V/24V
Power supply range
8~26V
Operating Temperature
-40℃~85℃
Power
< 2.5W
Waterproof grade
IP67
Frequency Band
77-78GHz
Interface
CAN/500kbps
Refresh rate
33Hz
Shell size
82*76.1*22.3mm
Product weight
About 109.5g
Antenna performance
Number of transceiver channels
2TX 4RX
Elevation(-6dB)
0~8°
Azimuth(-6dB)
－60° ~＋60°
Range resolution
0.2m
Velocity resolution
1.9km/h
Speed measuring range
±60km/h
Detection distance
40m

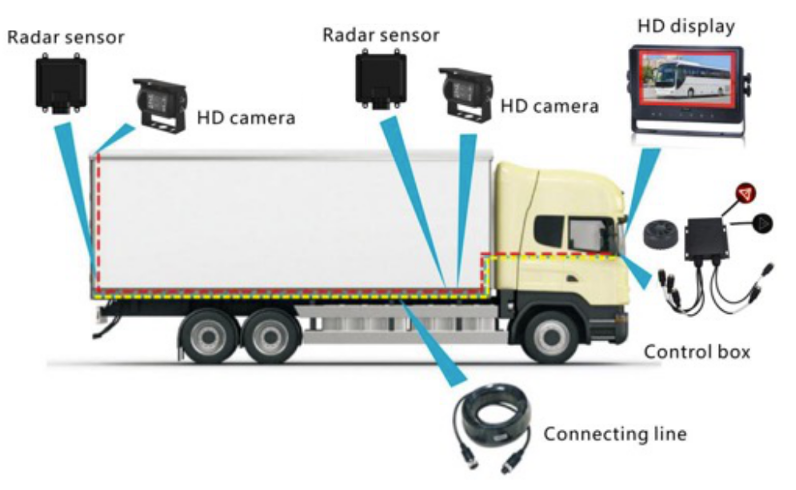

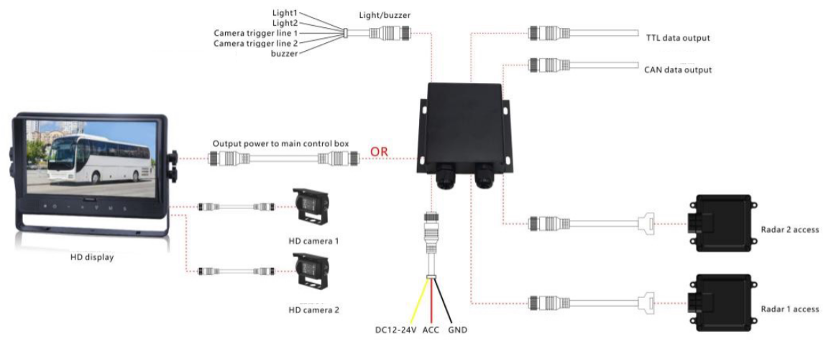

INSTALLATION DIAGRAM
